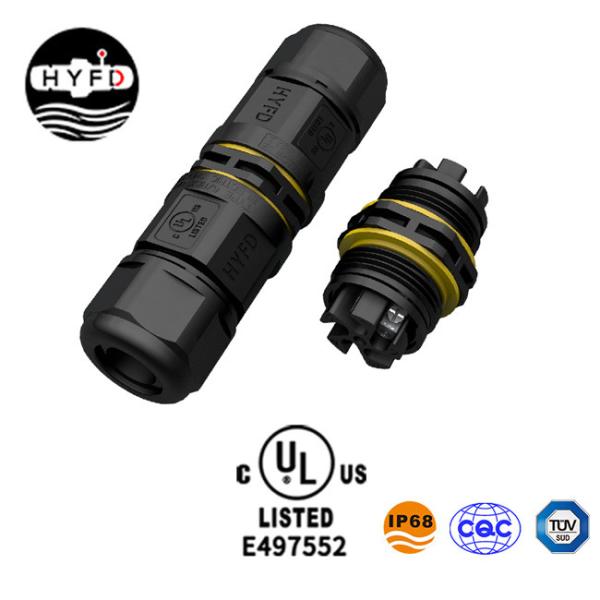

4 Pin Straight Screw Termination CQC Waterproof Circular Connectors

Name: 4 Pin Straight Screw Termination CQC Waterproof Circular Connectors
Brand: HYFD
Price: 1 USD

Buy cheap 4 Pin Straight Screw Termination CQC Waterproof Circular Connectors product

Brand Name : HYFD

Model Number : PG11

Certification : UL,TUV,CQC,IP68

Place of Origin : Guangdong,China

MOQ : 200/500

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30000/week

Delivery Time : 5-12 working days

Packaging Details : 40pcs/bag, 120pcs/carton

Type : Straight type

Material : Nylon PA66

Termination : Screw termination

Diameter : 26mm

Number of Pins : 2 pins, 3 pins, 4 pins

Operation Temperature : -40~105℃

Contact Now

4 Pin Straight Screw Termination CQC Waterproof Circular Connectors

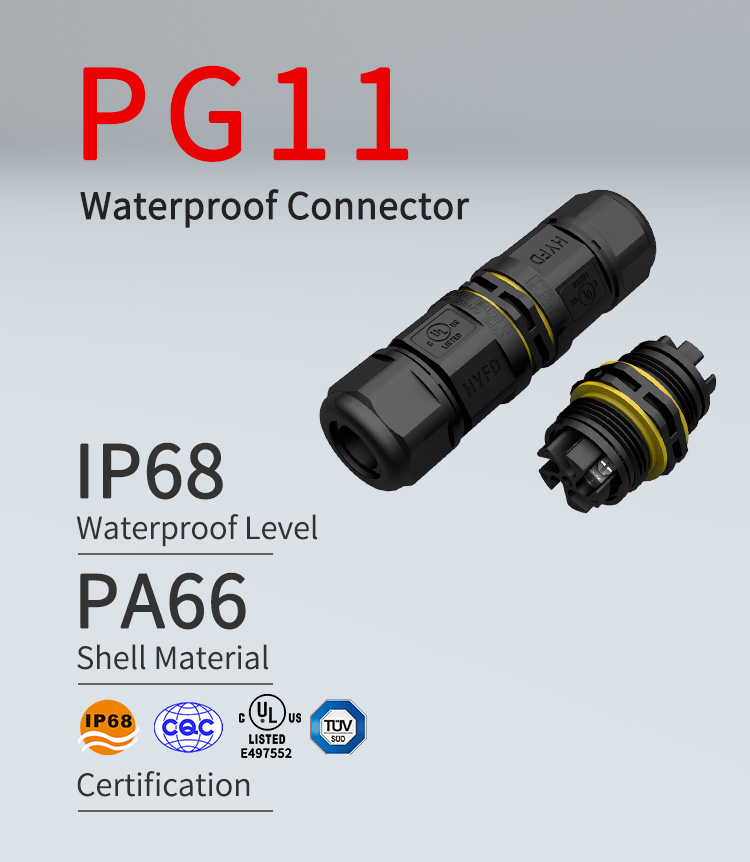

2 Pin 3 Pin 4 Pin PG11 IP68 Waterproof Cable Connectro Straight Screw Termination Connetor

Product Introduction:

1. Nylon PA66 material.
2. Black colour.
3. PG Series, high quality with competitive price.
4. Favorable waterproof feature: IP68.
6. Field aseembly type, quick and convenient.

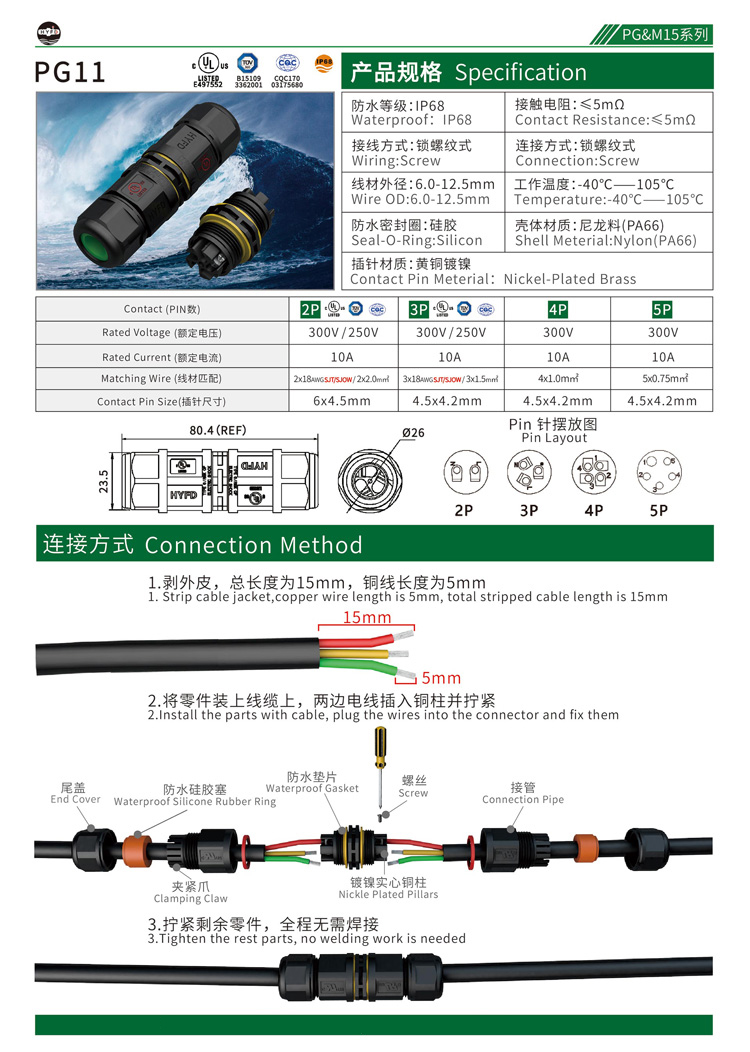

Product Parameter:

Item name	PG11 IP68 Outdoor Waterproof Cable Connector	Termination	Screw termination
Current rating	6A~10A	Operating temperature	-40℃~105℃
Operating voltage	250V	Wire OD	6.0~12.5mm
Mechanical life	1500 mating cycles	Contact pin material	Nickel plated brass
Contact resistance	≤5mΩ	Shell material	Nylon(PA66)
Contacts numbers	2 pin, 3 pin, 4 pin	Waterproof level	IP68

WHY CHOOSE US?

Shenzhen HuaYi-FaDa Technology (also known as Shenzhen 2IN1 Technology) is a professional manufacturer with over 17 years FACTORY experience for waterproof connectors.

Competitive Price And Service

•Competitive Price

•Delivery Time: 2-3 Weeks After Orders

•OEM, ODM Service As Per Customer's Requirements

•Free Samples Available: 3~5 PCS of each part number

Professional Certification

•ISO 9001:2008

•UL Certification

•TUV Certification

•RoHS Compliance

100% Guarantee Qualtiy

•Manufactured Under Strict Control

•100% Tested (Not Just Batch Tested)

•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years

•Quality Guarantee: 3 Years

4 Pin Straight Screw Termination CQC Waterproof Circular Connectors
